What Happens When You Combine A Porsche With A Lexus
Updated: May 25, 2020
When you a take design from a Porsche® and combine it with our MDRN Elite Retrofit Package, what do you get?
You get a very unique headlight and the maximum light output possible. We did all of this on our client's 2004 Lexus GS300.
What can we do to these headlights
The 2nd generation Lexus GS300 came with reflector type headlights and standard halogen bulbs. These headlights also had a factory HID option that was available on the bigger engined Lexus GS430.
Our client's headlight already had aftermarket HIDs installed but he wanted even better light output, which was his main concern. He also wanted something that looked different and would really stand out.
We needed something that would really bring the attention to the lights but nothing too gaudy. After going back and forth on some potential concepts, we came up with this design.
(Why not take an OEM design from another vehicle and combine the two? The shapes of the headlights are somewhat similar.)
2004 Lexus GS300 OEM Headlight

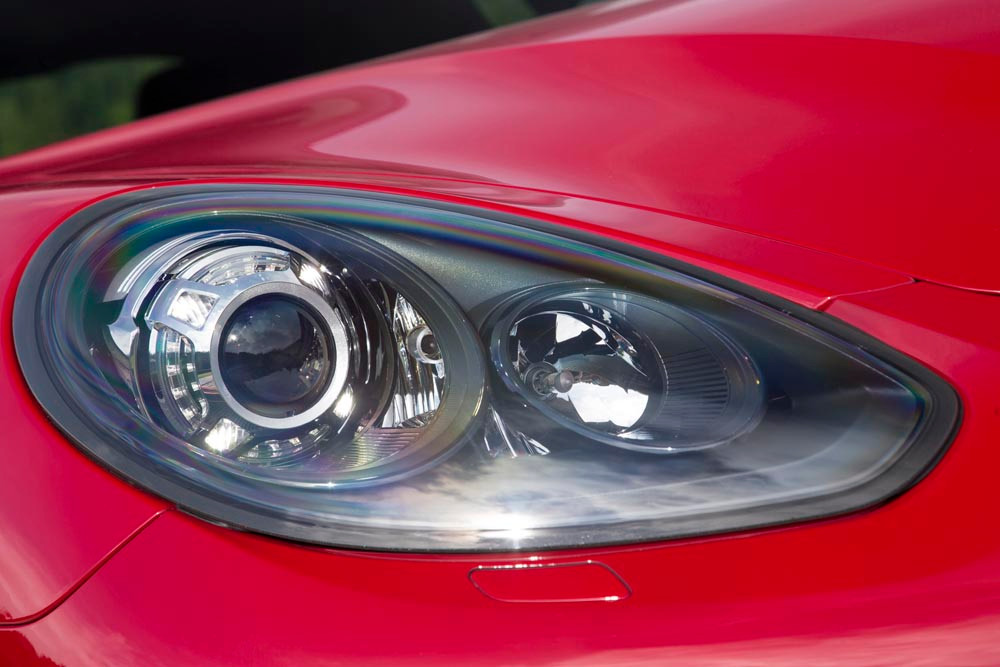

2014 Porsche Panamera Headlight by myAutoWorld
Let's Get MDRNIZED
The retrofit process
Using the Porsche® Panamera shroud would be the clear winner in achieving a unique look, and implementing our MDRN Elite Retrofit Package would result in the brightest output possible. Now it was time to bring it all together.
The GS300 headlights have large sized reflector bowls which make it easier to use bigger sized shrouds like the Panamera, but considering all the parts that were involved in this retrofit we needed even more space. After cutting, sanding, and punching holes until we made enough clearance to be able to mount all the parts, it was finally time for paint.
Multi-stage paint is the same process manufacturers and body shops use to properly paint a vehicle. This is the same process we use here at MDRN. Using House Of Kolor® Black, we painted the housings, bezels, and shrouds. We also added Orion Silver accents to the Panamera shroud to make it really stand out more.
(Paint from a spray gun and using high quality paints makes a huge difference in quality.)
Headlights before being sealed and installed on the vehicle
Headlights Completed & Installed
From concept to reality
After we got the headlights on the vehicle, it was time for some extensive custom wiring. The Panamera shrouds were wired to function as a DRL,(Daytime Running Light) and flash to amber for turn signal. To make use of all 4 projectors, they were all wired together as low beam and high beams. Now as for the demon eyes, we installed a switch inside of the glove box to manually turn the bluetooth controller on and off.
Morimoto D2S 5.0 & Morimoto Mini H1 7.0 Projectors
Porsche® Panamera Switchback & Mini Gatling Shroud
Honeycomb Lens Etch With Lexus Logo
OSRAM CBB HID Bulb With Morimoto 50 watt Ballasts
Morimoto 2Stroke LEDs
Profile Prism Demon Eyes With Morimoto XBT Controller
Diode Dynamics XP80 LEDs With Resistors
Morimoto Dual Relay Harness
House Of Kolor® Black & Orion Silver Paint
Brand New Aftermarket Headlight Lenses
Glove Box Switch & Custom Wiring
Our client loved the way the headlights turned out and the light output was beyond his expectations. Every little detail was done exactly how he requested. Now he can drive off into the night with brightness perfect for low/non-lighted areas while having a very unique set of headlights.
(We had a lot of fun working with this client and making their vision come true)
Headlights with demon eyes turn on
Headlights with turn signals on
When you want more brightness from your headlights and a one of a kind look, a headlight retrofit will take care of both. This Lexus got the highest retrofit package we offer and a lot of additional aesthetic add ons.
What do you think about the final result? What would you do different? What options would you choose for your retrofit?
